VGA-100H audio and video extender (ordinary level)
VGA-100H audio and video extender (ordinary level)
Share to:

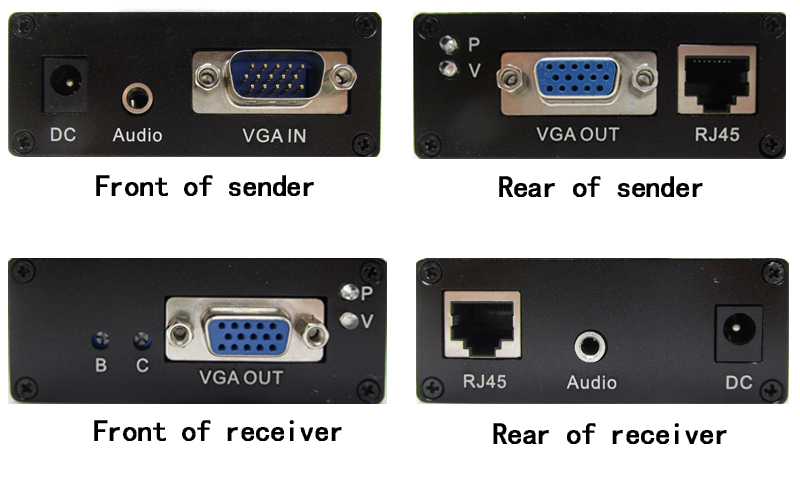

       This product includes a Sender and a Receiver. It can extend Audio and Video of the computer through a single cable up to 100m, so that user can see the picture and listen to the sound of the computer remotely.
        This product can be widely used in computer and monitor field, large screen advertisement, education, bank and industry etc.


Product Features:
1,
Use UTP cable to extend VGA & Audio signal up to 100m
2,
provider a VGA interface on the transmitter for using locally
3,
using single CAT5/CAT5E/CAT6 cable to extend signal,save cost
4,
supporting video & audio extending together
5,
Software free, pure hardware design, support Plug & Play
6,
the video & audio signals on the receiver are Real-time
7,
Crisp clear VGA images & strong ability for anti-jamming
8,
Can cascade operation for increase VGA outputs
9,
Support MS-DOS,Windows,Linux,Unix,Novell
10,
Use the high grade CMOS chip, accommodate to wide temperature range
11,
Index of anti-lightning and anti- invasion:withstand air-discharge 15KV, contiguity-discharge 8KV
12,Support the top resolution 1920x1400@85Hz

13,Audio functions optional

paramenter:

Size:
130mmX100mmX30mm
Weight:
1KG
input connector:
HD15PIN(VGA)
output connector:
HD15PIN(VGA)
local output:
HD15PIN(VGA)
bandwidth:
300MHz(-3 dB)

0-10MHz +0.1dB

0-130MHz +6dB to -0.8 dB
input level range:
0.5-2.0Vp-p
input level error:
less than 3mV
input impedance:
75Ω
output impedance:
75Ω
echo ullage:
-30dB@5MHz
Max DC compensation:
±5mV-0
SNR:
60dB
Connector standard:
HDB15,RJ45
Video standard:
VGA,SVGA,XGA,SXGA,UXGA,LCD
Cable standard:
cat5, cat5e, cat5 UTP cable and cat5e is suggested
Power adapter:
DC9-12V/1A
operational temperature:
-25℃~+70℃
deposited temperature:
-40℃~+80℃
relative humidity:
0~95%(non-condensing)
MTBF:
>27000 hours
