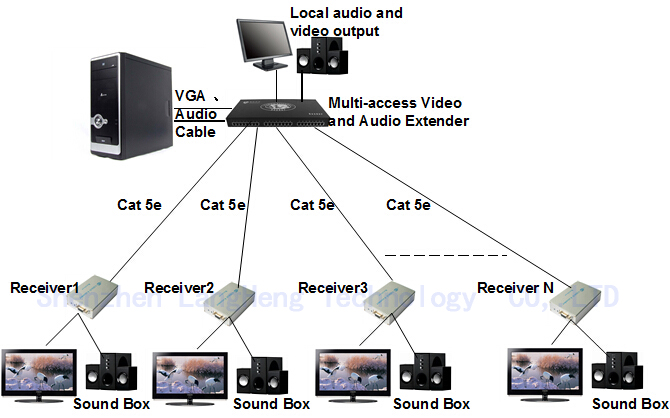

This product includes a Sender and multi-Receiver . The product specification can be designed differently according to your requirement, from one video and audio input, two RJ45 output to one video and audio input, ten RJ45 output. It can extend Audio and Video on computer up to 350m through a single cable. It has a VGA port on Sender, user can use remote computer.
This product can be widely used in computer and monitor field, large screen advertisement, education, bank and industry.
*Pure hardware design, no driver needed, support Plug and play.
*Real time transmission, without time delay.
*Max resolution support 1920*1440.
*Support local VGA/AUDIO output on sender
*Max extension distance 350meters
*Audio functions optional
Technical Specification
Size: 430mm*220mm*50mm
Weight: 3.5kg
Extend Length: 1-350m
Cable Type: CAT5, CAT5E, CAT6, UTP, CAT5E and UTP suggested
Video type: VGA, SVGA, XGA, SXGA, UXGA,LCD
Video Standard: 0.7Vpp
Audio Type: 1Vpp
Connector: HDB15, RJ45
System Support: No
Sender Power: AC220V 10W
Receiver Power: depend on Receiver

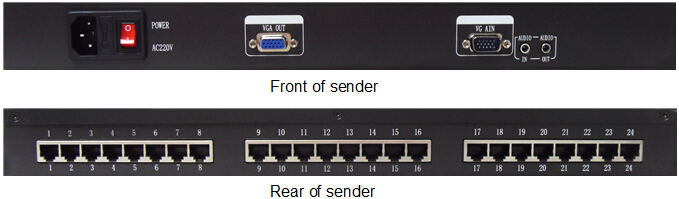

Front drawing:
