Item introduction
The item consists of a sender and a receiver, which with sender and receiver on each case.only use a single network cable to the VGA source, USB, Audio Interface extended to the distal end,Users can watch real-time images at the distal end.This item supports max resolution 1920*1080@60Hz,supports TCP / IP protocol, a switch can be connected to increase 100 meters more,can be cascaded several times

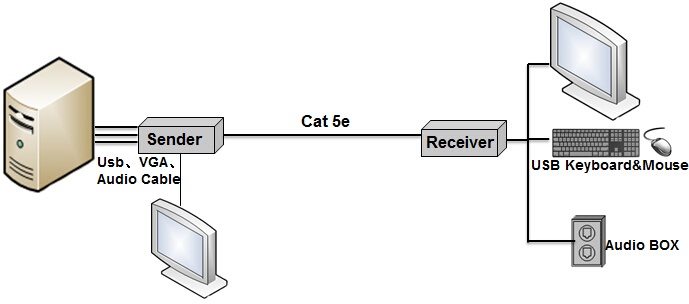

Point to Point Connection

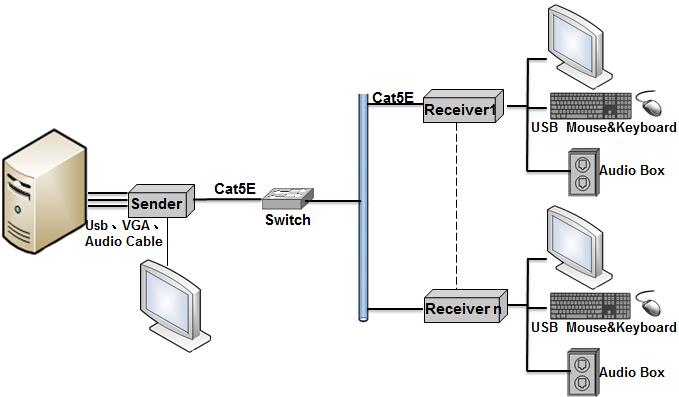

Point to many Connection
Item features
1,support resolution up to 1920*1080@60Hz
2,Each network switch connected increase 100m more,and can be cascaded several times while the signal is not attenuated
3,Single cable transmission, pure hardware design, no driver, plug and play
4,Supports TCP / IP protocol, then the switch can not only increase the transmission distance,and a transmitter to multiple receivers can assign functions;
Product Specifications
|
function
|
input signal
|
Sender : one channel (VGA,USB,AUDIO)
|
|
output signal
|
Receiver : one channel(VGA,audio),two channel USB
|
|
transmission distance
|
200m
|
|
VGA
Video interface and performance
|
Video input
interface
|
HD15PIN(Male systemVGA)
|
|
Video output interface
|
HD15PIN(female system VGA)
|
|
Video signal processing bandwidth
|
>350MHz(-3dB)
|
|
Synchronization signal
|
>200KHZ
|
|
Video resolution
|
support 1080P
|
|
Audio interface and performance
|
interface
|
3.5mm Stereo audio jack
|
|
bandwidth
|
10HZ~20KHZ
|
|
USB
|
interface
|
A type
|
|
protocol
|
Access only supports USB keyboard and mouse
|
|
Transmission interface
|
RJ-45
|
by Cat5e/Cat6
|
|
Attributes
|
Size(L*W*H)
|
Sender : 130mm*118mm*30mm
Receiver : 130mm*114mm*30mm
|
|
N.W
|
0.8Kg
|
|
material
|
Iron case
|
|
color
|
black
|
|
Power supply section
|
Adaptation voltage range
|
input ：AC100-240V~50-60HZ
output ：DC9V/2A
|
|
Sender power dissipation
|
<7W
|
|
receiver power dissipation
|
<7W
|
|
Operating environment
|
Operating temperature
|
-15℃-55℃
|
|
storage temperature
|
-40-80℃
|
|
humidity
|
0-95% (Non-condensing）
|

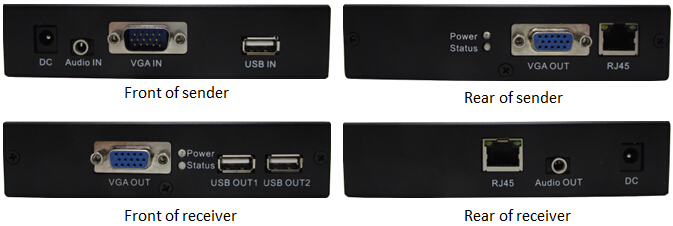

Product Interface
