Product Introduction:

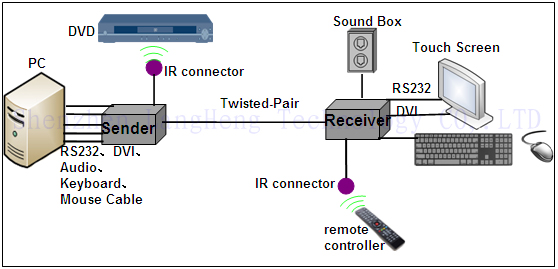

The product includes a sender and a receiver, which support DVI, PS2, RS232, Audio and IR signal of signal source to remote location by single cat5e, max video resolution 1920*1080 @ 60Hz.
The product can be widely used in data service center, industrial control, video conference system etc.
Product Feature:
1, Max resolution support 1920*1080@60Hz
2, Extension distance 200meters
3, Single network cable transmission, pure hardware design, no need any software driver, plug and play
4, Audio and remote power switch can not transmit at the same time, so only one of them for option
Product Specification:
Video
|
Video input
|
DVI-I (only support DVI-D signal)
|
|
Video resolution
|
1080p
|
|
Keyboard/mouse
|
PS2
|
|
Audio/ remote power switch
|
3.5mm phone jack
|
|
IR
|
3.5mm phone jack
|
|
Serial
|
3.5mm phone jack
|
|
RJ-45
|
Cat 5E/Cat6
|
|
Physical
|
Size（L×W×H）
|
Sender: 205mm*110mm*30mm
Receiver: 205mm*110mm*30mm
|
|
N.W.
|
1.1Kg
|
|
Power
|
Voltage
|
DC 5V/2A
|
|
Sender power consumption
|
<4W
|
|
Receiver power consumption
|
<4W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|

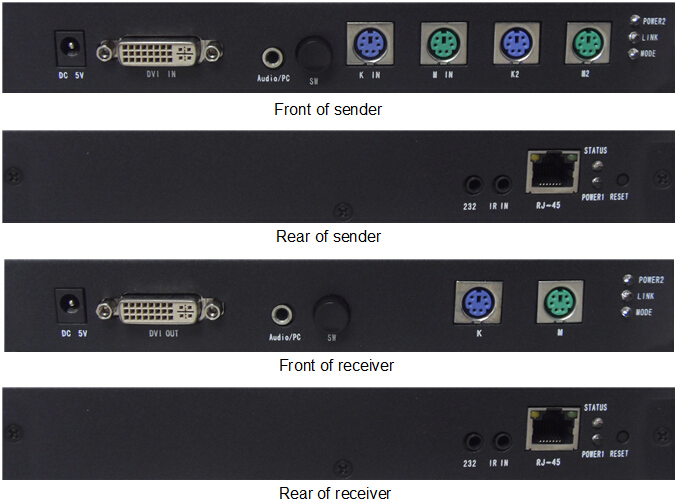

Front drawing:
