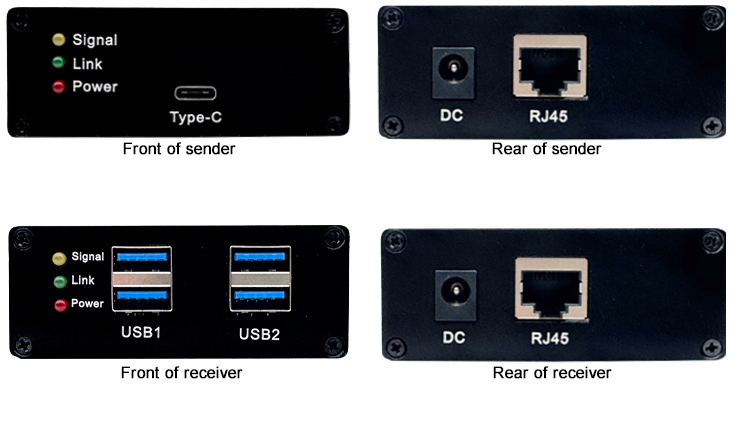

This product is an extender for USB 3.0 protocol, consisting of a transmitter (labeled as "Sender") and a receiver (labeled as "Receiver"). The receiver extends four USB 3.0 interfaces and is compatible with USB 2.0 and 1.1 protocol devices. It is suitable for USB printers, USB flash drives, portable hard drives, USB motion sensors, cameras, touch screens, keyboards and mice, USB to video/audio converters, and other devices. It can be extended up to 100 meters using a single CAT6a/7 Ethernet cable.

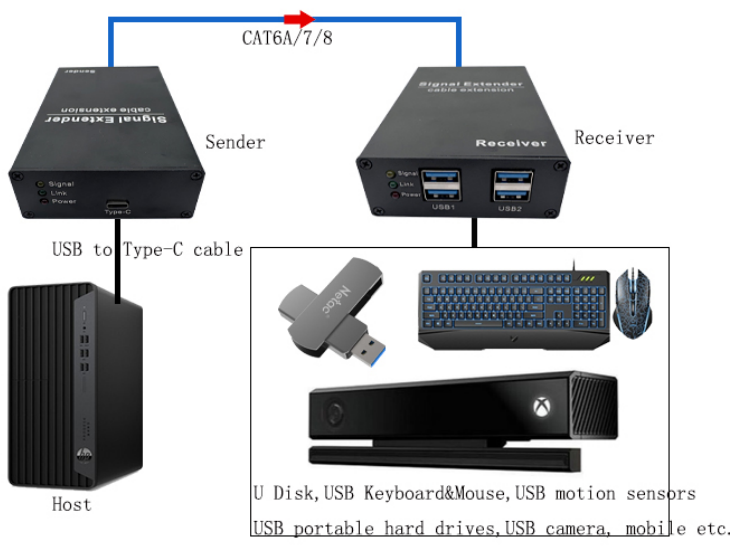

Connection diagram
1. USB 3.0 data rate up to 5 Gbps;
2. The receiver is extended with 4 USB 3.0 interfaces, supporting devices with USB 3.0, 2.0, and 1.1;
3. A single Ethernet cable CAT 6a/7 can reach up to 100 meters;
4. Truly plug and play, without the need for software drivers;
5. Suitable for mainstream operating systems: Windows, MAC OS, Linux, etc.
|
Function
|
Number of input signal
|
Sender：1CH Type-c
|
|
Number of output signal
|
Receiver：4CH USB
|
|
Transmission distance
|
0-100m
|
|
USB
|
Interface
|
Sender：TYPE-C
Receiver：Type A
|
|
Protocol
|
Support USB3.0
|
|
Network interface
|
RJ-45
|
CAT6A/7/8，Recommend using CAT6A and above shielded Ethernet cables
|
|
Driver
|
No need driver
|
|
Attribute
|
Size（L×W×H）
|
Sender:108 mm×74mm×30mm
Receiver:108 mm×74mm×30mm
|
|
The shell
|
Aluminum
|
|
Color
|
Black
|
|
Power supply
|
Voltage range
|
DC12V/2A
|
|
Sender consumption
|
4W
|
|
Receiver consumption
|
6W
|
|
Operating environment
|
Working Temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Relative humidity
|
0-95% (No condensation）
|
