This kit comes as a pair, with one Sender unit (marked with "Sender") and one Receiver unit (marked with "Receiver").
The UDO2A-3DU(AS)-(2P) DP KVM extender kit allows you to transmit 2-channel 4K video source to your remote DP displays at a distance of up to 20km away via two single-mode fiber cables. Audio de-embedding allows 2 channel audio to be passed to an amp through 3.5mm stereo audio ports. It features a built-in 4-port USB hub that also lets you connect four remote USB peripheral devices at your display location. Additionally, RS232 control allows you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for control centers, HD security monitoring, multimedia release, video conferences, multimedia classrooms, centralized computer management, outdoor advertising, educational facilities, large screen splicing applications, etc.

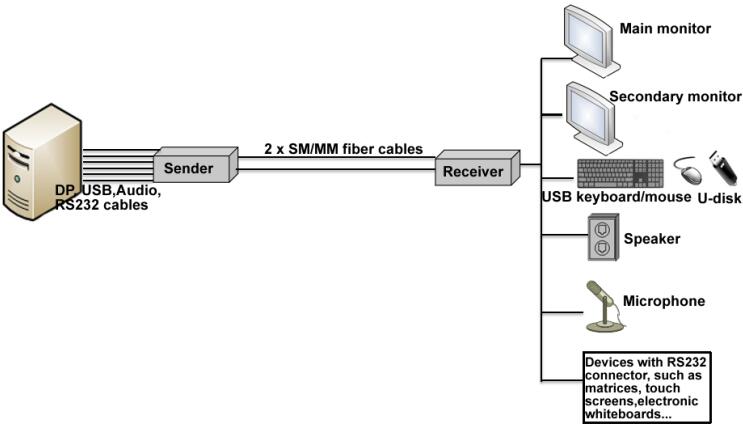

Connection Diagram:
1. Digital video transmission allows for zero latency, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Extends dual DP signals up to 20km via two single-mode fiber cables or up to 500m via two multi-mode fiber cables;
3. Extends your Monitor to work twice as fast. With this extender, you will able to plug 2 DP Monitor Displays into your Laptop or Desktop to get an Extended or Duplicate Display;
4. It will allow you to display 3 separate screens including your laptop/PC screen;
5. Supports resolutions up to 4K×2K;
6. DP1.4 full compliant, 3D video supported;
7. Ensure compatibility for your remote displays with EDID pass-through;
8. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcams, mobile phone charging and data transferring, portable storage devices, touch screens, etc. The high-current design provides perfect stability, eliminates intermittent signal loss or disconnected DP cables;
9. Features 3.5mm jacks (optional) on both the Sender and Receiver for individual 2 channel audio support;
10. Bidirectional RS–232 Extension (optional) — Serial interface data flows in both directions, allowing data transmission and device control;
11. Each Sender/Receiver is equipped with dual DC power input/output ports to provide backup power and ensure stability;
12. Durable aluminum alloy housing improves heat dissipation and ensure system stability during long hours of operation;
13. Plug and play installation, no software or driver needed.
