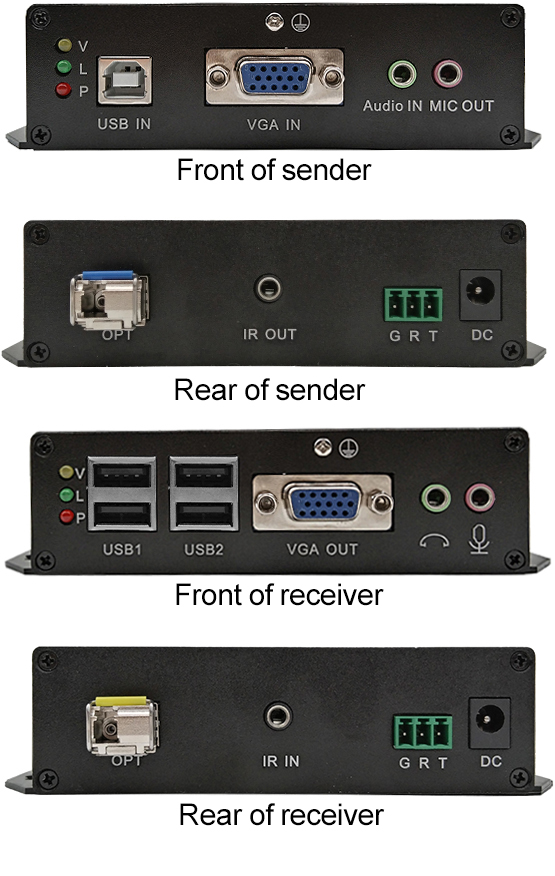

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The UVO-3VUAS VGA KVM extender kit extends UHD 4K@30Hz VGA signals to the remote end through single SM/MM optical fiber at a distance of up to 20km. Moreover, it supports RS-232 & IR control. The IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. While RS-232 control lets you connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for HD monitoring, multi-media information release system, video conference, multi-media classrooms, PC centralized management system, outdoor advertising, large screen splicing applications, etc.

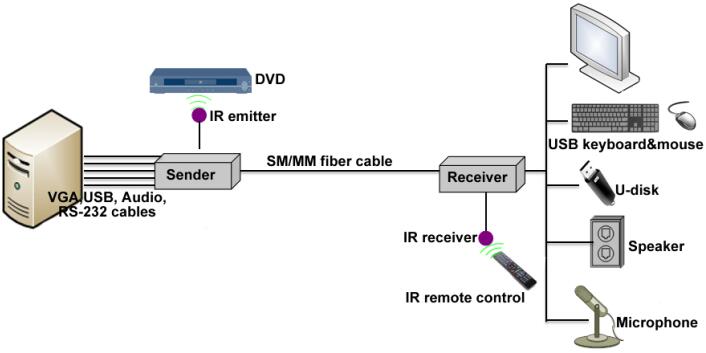

Connection Diagram:
1. Uncompressed audio and video at zero latency, strong anti-interference ability;
2. Extends VGA signals up to 20km via a single-mode fiber cable or up to 2km via a multi-mode fiber cable;
3. Supports video resolutions up to 4K×2K@30Hz, you can create cutomize resolutions using your graphic card’s control panel;
4. Ensure compatibility for your remote displays with EDID pass-through;
5. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcam, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected VGA cables;
6. Features 3.5mm audio jacks on both the Sender and Receiver units for stereo audio speaker and microphone connection;
7. IR control allows your VGA source device to recognize remote commands, you can control the VGA source device from the remote location;
8. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.;
9. Audio, IR & RS-232 control functions optional;
10. Durable aluminum alloy housing improves heat dissipation and ensure system stability during long hours of operation. Integrated mounting bracket for easy placement;
11. Plug and play installation, no software or driver needed.
