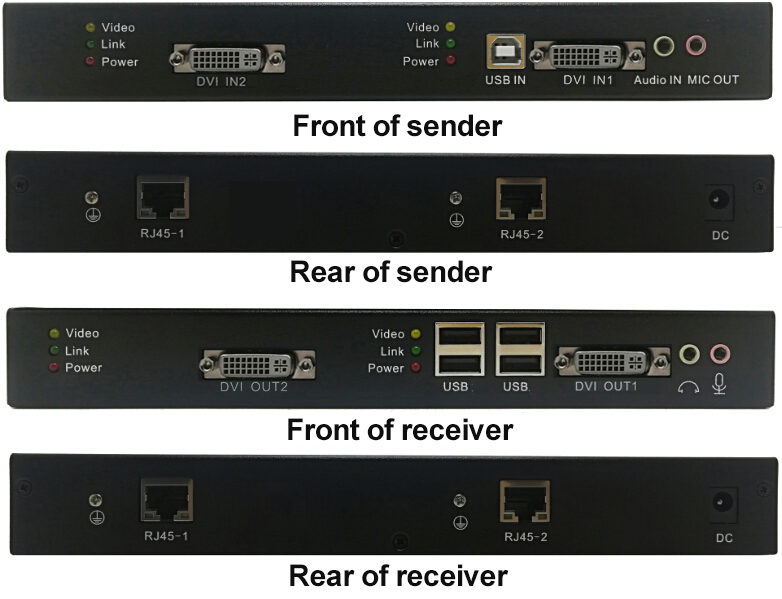

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The IPDE2-120UA DVI extender kit lets you transmit 2 channel 4K video source to your remote DVI displays at a distance of up to 120m away via two Cat5e/6 cables. Audio de-embedding allows 2 channel audio to be passed to an amp through 3.5mm stereo audio ports. It features a built-in 4-port USB hub that also lets you connect four remote USB peripheral devices at your display location.
Ideal for HD security monitoring , multi-media release systems, video conferencing, multi-media classrooms,centralized computer control system, outdoor advertising, education systems, large screen splicing appications etc.

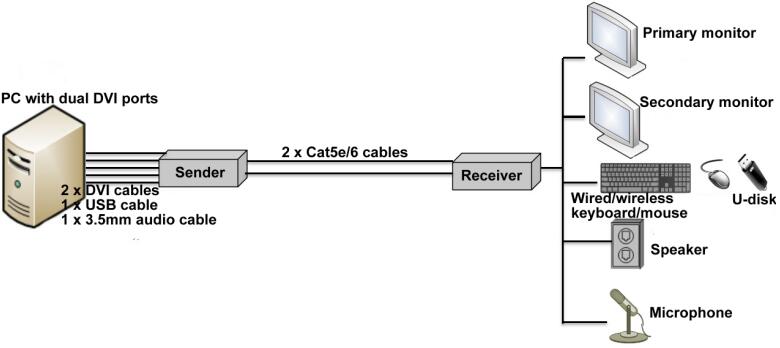

Connection Diagram:
1. Uncompressed digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Supports resolution up to 4K×2K@30Hz, 3D video supported;
3. Ensure compatibility for your remote displays with EDID pass-through;
4. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcam, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected DVI cables;
5. Features 3.5mm jacks(optional) on both the Sender and Receiver for individual 2 channel audio support;
6. High quality metal housing with cooling slots provide excellent heat dissipation and cooling for stable operation during extended hours of use;
7. Plug and play installation, no software or driver needed;
8. We provide a one-year limited warranty and free lifetime technical support.
