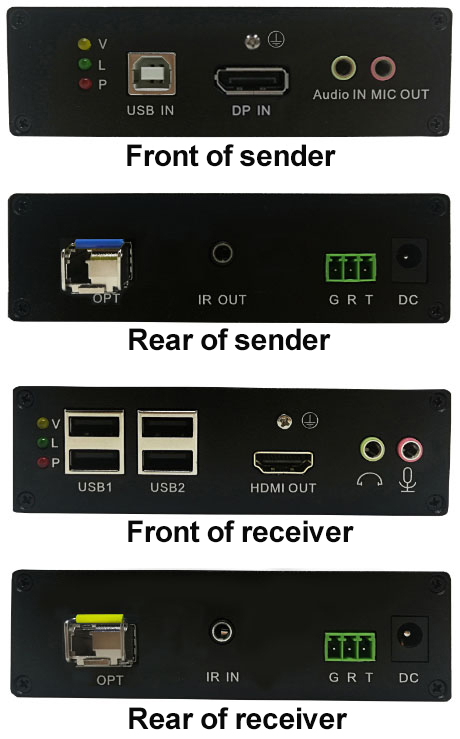

The product is composed of transmitter(marked with sender)and receiver(marked with receiver),can extend the video signal(Transmitter DP input, receiver HDMI output), Stereo audio, Mic, USB signal to the far end through one single fiber optical cable.It can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan/tilt, electronic whiteboard and other devices. IR signals can be used for infrared remote control of DVDs, set-top boxes and other devices. The farthest transmission distance is 20 kilometers, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
Products can be used in security monitoring, multimedia information release, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

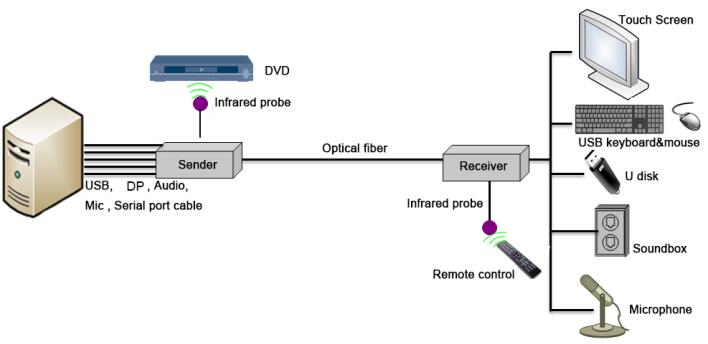

Connection Diagram:
1. Digital uncompressed transmission, clear image and strong anti-interference ability;
2. Support multiple resolutions, maximum 4K×2K@30HZ;
3. Support HDMI1.4, support 3D;
4.Support EDID transparent transmission, compatible with different brands of display output devices;
5. Support USB2.0 protocol, excellent USB device compatibility, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc.
6. Support bidirectional transmission of audio;
7. Support bidirectional transmission of serial port;
8. USB,Infrared, serial port, audio function (optional).
