WH-200HUAS-M(HDMI+USB+Audio+RS232+IR Wireless Transmitter)
WH-200HUAS-M(HDMI+USB+Audio+RS232+IR Wireless Transmitter)
Share to:

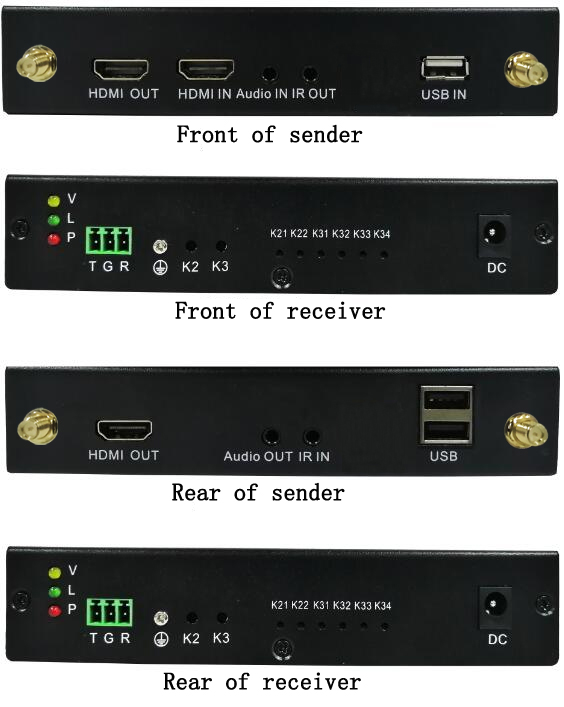

The kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).

It extends high-resolution 1080P HDMI video,audio and USB signals from transmitter to the receiver wirelessly at a distance of up to 200m(line of sight) . It features a local HDMI output on the Sender unit for local display support enabling you to see what you are extending.


Moreover, the WH-200HUAS-M supports RS232 & IR control. RS232 control lets you connect a serial I/O device at your display location - an ideal solution for adding a serial touch screen interface to your remote display. IR extension enables you to control an IR-enabled source device, such as a DVD or TV Set-top box.

Ideal for HD security monitoring, multimedia release system, video conference, multi-media classrooms , PC centralized management system applications etc.

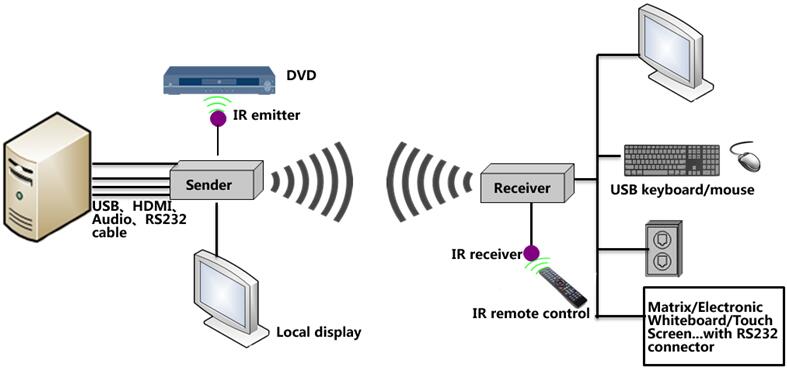

Connection diagram:

1.This wireless extender uses advanced compression technology to ensure a stable connection and a high-quality picture with low latency.

2.Supports video resolutions up to 1080p

3. It features a local HDMI output on the sender for local display support enabling you to see what you are extending

4.Wirelessly stream from a distant device without the hassle of installing cables

5.Supports point to point and multi-point to multi-point configurations in the same room

6.Strong anti-interference ability, no interference with other Wi-Fi equipment

7.It easily penetrates through various barriers such as standard home walls, floors, and ceilings to suit your setup needs.

8.IR control、RS-232 serial、Audio functions optional

Function

Input signals

Sender1 channel(HDMIUSBRS232AUDIO)

Receiver1 channel IR

Output signals

Receiver1 channel IR

Receiver1 channel(HDMIRS232AUDIO)2 channel USB

Transmission distance

Up to 200m (line of sight)

Video

I/O

HDMI

HDMI version

HDMI1.3

HDCP

HDCP1.2

Vidro resolutions

Up to 1080P

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signal

0.5-1.5Vp-p(TTL)

DDC signal

5Vp-p(TTL)

USB

Type

Type-A

Compatible with

For USB keyboard/mouse only

Audio

Connector

3.5mm stereo audio jack

RS-232 serial

Connector

3-pin phoenix connector

Type

Bidirectional

Infrared control

Connector

3.5mm audio jack

Signals

Infrared remote control signal

Wireless technology

Frequency

5.8GHZ

Antennas

External

General

DimensionsL×W×H

Sender:  150mm×64mm×30mm
Receiver:
  150mm×64mm×30mm

Enclosure type

Iron

Colors available

Black

G.W.

1Kg

Power

Power supply

DC12V/1A

Power consumption of Sender

4W

Power consumption of Receiver

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation
