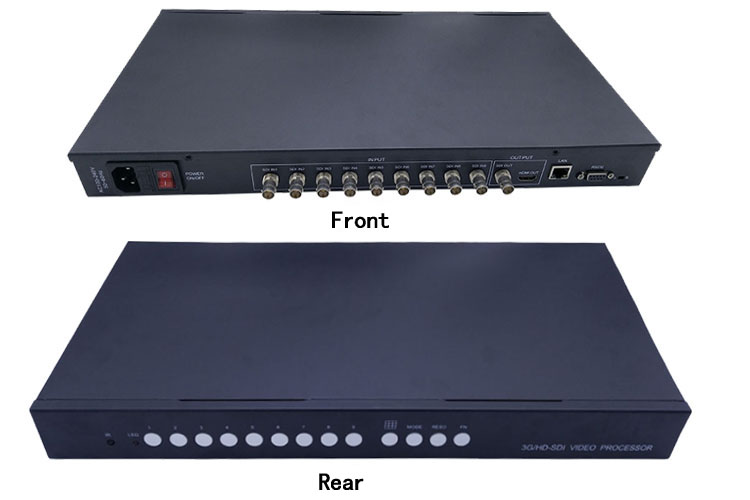

SDI-VS9(SDI video 9 picture splitter)

Share to：

This SDI Multiviewer allows you to simultaneously display real-time video from four different video sources on a single display and supports video resolutions of 720P to 1080P. It is capable of displaying the video signals in full, quad, multiple-window overlays, PiP, PoP, or custom mode.

* High-speed FPGA hardware architecture, all-digital signals, lossless video switching and screen splitting.

* Automatically detect active input source signals and configure multiple display modes.

* Automatic input signal equalization, crystal-clear image quality, stable signals transmission

* Built-in lightning and ESD protection circuit will protect this HDMI multiviewer from damage caused by lightning and electrostatic discharge

* The simple plug and play design requires no additional installations or complications

* Can be controlled via RS232 serial port or Ethernet.

* Supports multiple display modes.

* Supports power-off memory function.

* Supports seamless switching

* Powerful host computer
Configure and control the host computer through RS232 serial port and Ethernet. This full-featured multiviewer with lossless signal transmission is easy to use and ready to go, plug-n-play installation requires no software or driver.

* Powerful data processing capabilities
Multi-channel parallel data processing, each output port occupies one channel. 4.95Ghz/s high-bandwidth ensures real-time signal processing, meets and accommodates video resolutions up to 1920x1080@60Hz (148.5MHz) per channel. You are able to view fast-moving dynamic pictures with no delay or frame loss. Full system synchronization, no tearing, and jagged image.

* Pure hardware architecture
This HDMI multiviewer is based on a pure hardware architecture that ensures its stability for 7/24/365 applications. No operating system, there is no risk of freezing, BSOD(blue screen of death) or infected by a virus. The boot time is less than 30seconds, this HDMI multiviewer supports up to 4 channels of input signals and can be cascaded.

* Ultra-low power consumption
Using a high-end FPGA chip, the maximum power consumption of the whole board is 7W (the power consumption of motherboard is 12V@0.6A), much lower than other TV-chip splicing solutions (About 40W). With ultra-low power consumption, this multiviewer is power-saving with long life and dependable performance.

*High cost-performance ratio
With excellent independent R&D and production capabilities, we can reduce the number of intermediate steps. All the components of this cost-effective multiviewer are long-life high-temperature resistant ones. Our simply designed single-board integrated multi-channel solution has a longer life-time than the motherboard & daughter board cascading solution for multiviewer/blade industrial computer server on the market.

Name	Specifications
SDI input
Input ports	SDI
Pixel clock frequency	148.5MHz/74.25MHz/27MHz
Input Video resolutions	576x480@60Hz ~ 1920x1080@60Hz
Color depth	24-bit（16.77 million colors）
Zoom and display	Unlimited
Image control	Move, Resize, overlay
HDMI output
Output port	HDMI
Output video resolutions	1920x1080p@60Hz 、 1920x1080p@50Hz 、 1920x1080p@30Hz 、 1280x720p@60Hz
Color depth	24bit（16.77 million colors）
Zoom and display	Unlimited
SDI output
Output port	SDI
Output signal	SDI /HDMI
Output video resolutions	1920x1080p@60Hz 、 1920x1080p@50Hz 、 1920x1080p@30Hz 、 1280x720p@60Hz
Fresh rate	30Hz 、50Hz 、60Hz
Color depth	24-bit（16.77 million colors）
Control methods	RS232、Ethernet
Control software	PC control software
Power supply	Input ：AC 220V@50Hz
Power consumption	Max. 7W
Dimensions(LxWxH)	440* 240*43mm
