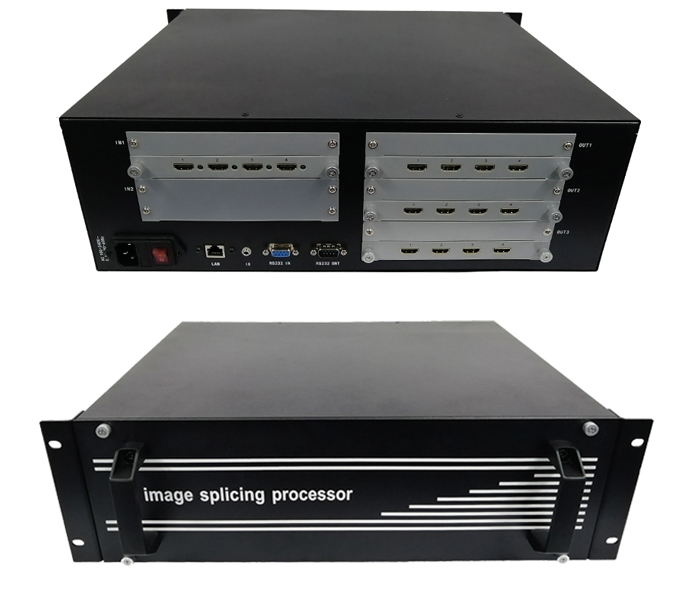

External rack splicing processor
External rack splicing processor
Share to:
This Video Wall Processor is a flexible, stable high-performance signal switching 、splitting , and video processing workstation that can be employed in fields including education and research, government announcement, information publishing, administrative management, military command, exhibition and shows, security monitoring, home appliance sales, etc. Advanced image processing technologies such as high definition video signal collecting, real-time, and high-resolution digital image processing, and advanced three-dimensional digital filtering are integrated into this video wall processor. Large-capacity, high-speed FPGA based, no CPU or operating system. Moreover, hardware-based architecture and modular design ensure the real-time processing of all input signals and the consistency of the data, leading to no image delay, discretization, frame loss, which guarantee excellent video displaying. This video wall processor is available with VGA, HDMI, IP, CVBS... inputs in Full HD 1080P resolutions. Supports multiple customized screen layout configurations from 4x4, 4x12, 16x16 ...up to 40x40.
1.Pure hardware architecture, excellent image processing performance;
2.No compression or decompression processing, distortion-free image output
3.Pure hardware design, no CPU or operating system;
4.Wide range of input cards for any video format: HDMI, HDMI-4K, DVI, SDI, VGA, IP, CVBS, (mixed card: 2BNC, 2HDMI, 2VGA);
5.Ideal for combining displays with different screen sizes and resolutions, even unconventional special-shaped LED Display into a video wall or a multi-vision
system;
6. Compatible with HDMI signals with single-channel bandwidth up to 3.2G, supports video resolutions up to Full HD 1920*1080P
7.  Allows up to four windows to be displayed on a single screen, video windows can be roamed, zoomed in or out while they can overlap any video window up to 4 layers
8. Supports scrolling messages display and text overlays, built-in power-fail memory function; flexible modular design, hot-swappable I/O modules, easy to use and maintenance
9. Standard chassis design, easy installation, reducing cable clutter, an excellent solution for large-screen applications
10. Stable and reliable redundant power supplies; this video wall processor can be controlled by RS232 input/loop out, RJ45 Ethernet, Web, iPad or mobile phone app.
11. Specialized multi-functional control software, easy installation;
highly stable to ensure 7x24 hours of continuous operation.

Connectors

Input

HDMI/VGA/CVBS/HDMI-4K/DVI/SDI

Output

HDMI/DVI

Video resolutions

Input

VGA/HDMI:4K@30HZ,1920×1080@60Hz

and below

CVBS: SD(standard definition) signal

Output

HDMI:1920×1080@60Hz/1366×768@60Hz

I/O modules

Input

HDMI input4 ports/card

Mixed input 2 x HDMI + 2 x VGA or CVBS ports

DVI input4 ports/cardcompatible with HDMI/VGA/YPBPR/CVBS signals when using converter adapters

SDI input4 ports/cardsupports 3G-SDIHD-SDI etc.

Output

HDMI output4 ports/card

DVI output4 ports/card

Large-scale

MAX: number of input/output signals

10 input/output cards (40 inputs /40 outputs

Configurations

Up to 40x40 screens

Parameters

Image processing

Roam, overlay, zoom in/out

Single-screen window

4

Unique features

Pixel to pixel

Achieve high-performance pixel-to-pixel image processing

Flickering-free switching

Uninterrupted screen transitions without flickering during source selections

60Hz

Keep 60Hz refresh rate while roaming, overlay and zooming

Vertical synchronization

Fast-moving imagery with no misalignment

Control

Control port

RS232 input /loop out /RJ45

Control software

Video wall processor control software

General

Dimensions

455L×290W×270mmH

Enclosure type

Metal

N.W.

10 KGS

Power supply

Input

100-240VAC,50/60Hz

Power consumption

<200W

Environmental

Heat dispassion

Built-in cooling fan

Working temperature

-10℃~+55℃

Working humidity

10%~90%

Working time

7×24 Hours
