The kit comes as a pair, with one sender unit and one receiver unit.
This HDMI extender kit lets you transmit 2 channel 4K video source to your remote HDMI displays at a distance of up to 20km away via two fiber optic cables. Audio embedding allows audio/mic signals to be passed through 3.5mm Stereo Audio ports. The extender features a built-in 4-port USB hub that also lets you connect four remote USB peripheral devices at your display location.
It can be widely used in HD security monitoring , multimedia release systems, video conferencing, multimedia classroom,centralized computer control system, big screen advertising, education systems, large screen splicing system etc.

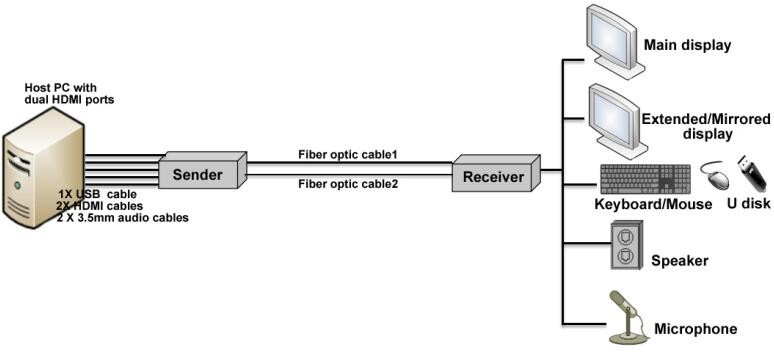

Connection Diagram:
1. Digital video transmission with zero latency;
2. It supports resolution up to 4K×2K@30HZ;
3. HDMI1.4 full compliance, 3D video supported;
4. EDID pass-through, compatible with different brands of display devices
5. Support USB2.0 protocol, with up to 4 USB interfaces, suitable for USB keyboards, mice, HD web cameras, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected HDMI cables.
6. 2-way audio supported.(optional)
|
Function
|
Input signals
|
Sender：1channel(USB、AUDIO)，2 channel HDMI
Receiver：1channel MIC
|
|
Output signals
|
Sender：1channel MIC
Receiver：1channel AUDIO，2channel HDMI，4 channel USB
|
|
Transmission distance
|
SM Fiber：0-20km
MM Fiber：0-2km
|
|
Video
|
I/O
|
HDMI
|
|
HDMI version
|
HDMI1.4
|
|
HDCP
|
HDCP1.2
|
|
Video resolutions
|
Up to 4K×2K@30HZ
|
|
Color depth supported
|
24-bit/30-bit deep color/36-bit deep color
|
|
Supported audio formats
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
DDC signal voltage
|
5Vp-p(TTL)
|
|
USB
|
Connector
|
Sender：Type-B
Receiver: Type-A
|
|
Protocol
|
USB2.0
|
|
Audio
|
Connector
|
3.5mm stereo audio jack
|
|
Cabling
|
Type
|
SM/MM fiber, LC connector
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
General
|
Dimensions（L×W×H）
|
Sender: 232mm×93mm×30mm
Receiver: 232mm×93mm×30mm
|
|
Enclosure type
|
Aluminum
|
|
Color
|
Black
|
|
G.W.
|
1.5Kg
|
|
Power supply
|
Voltage
|
DC12V/1.5-2A
|
|
Power consumption of sender
|
3W
|
|
Power consumption of receiver
|
3W
|
|
Operating environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (no condensation）
|
