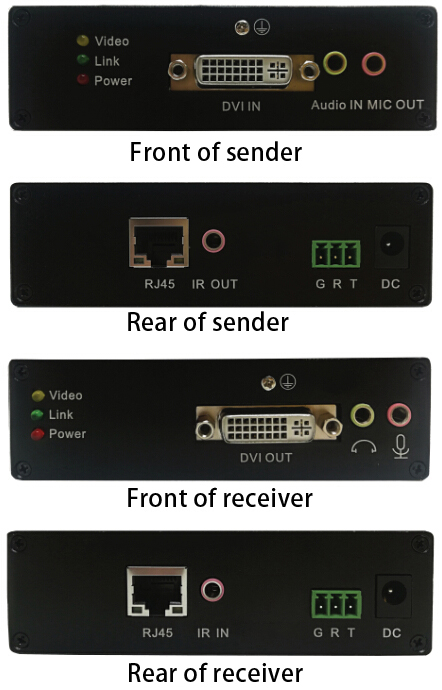

This product is a pair of complete sets of equipment, one of which is a transmitter (labeled with Sender) and one is a receiver (labeled with Receiver); DVI video, independent audio, and microphone can be extended to the far end through a single network cable. It can also transmit RS232 serial port signals for long-distance transmission with devices such as touch screen, pan/tilt, and electronic whiteboard. The IR infrared signal can be used for infrared remote control of DVD, set-top boxes and other devices. The farthest transmission distance is 120 meters, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
Products can be used in security monitoring, multimedia information publishing, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

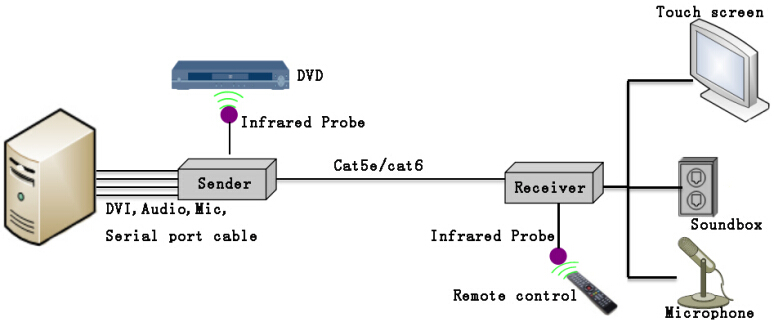

Connection Diagram:
1. Digital uncompressed transmission, clear image and strong anti-interference ability;
2. Support multiple resolutions up to 4K×2K@30HZ;
3. Support reading EDID, compatible with different brands of display devices and able to lock screen
4. Supports two-way transmission of audio
5. Supports transmission over gigabit LAN
6. Support serial port two-way transmission, only limited to IPDE-120DS model
