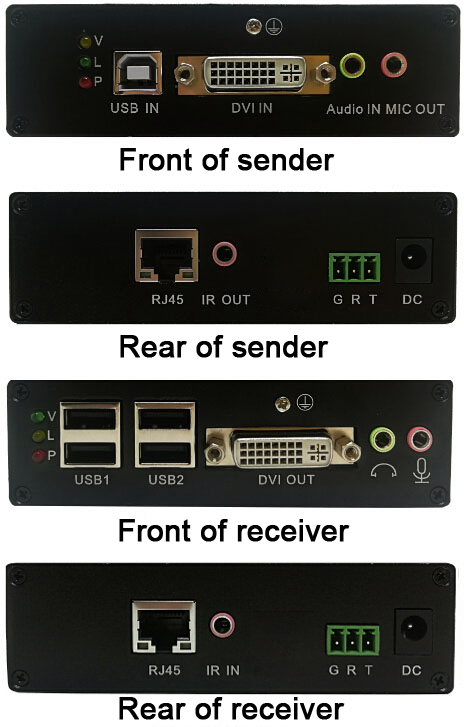

This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver".It can extend DVI video, independent audio, microphone, USB to the remote end through a single network cable, and can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan/tilt, electronic whiteboard, etc., IR infrared signal Infrared remote control of devices such as DVDs, set-top boxes, etc. The farthest transmission distance is 120 meters, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
Products can be used in security monitoring, multimedia information publishing, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

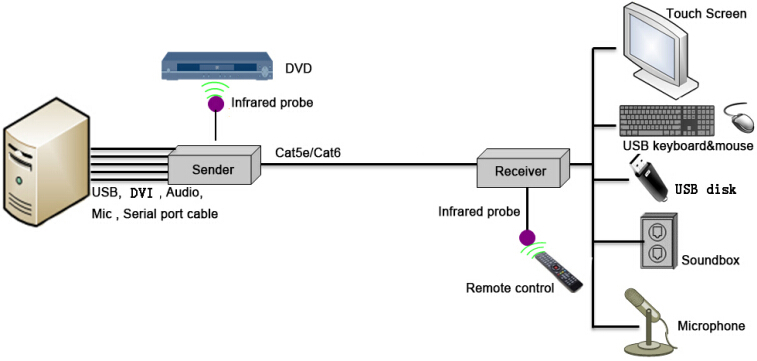

Connection Diagram:
1. Digital uncompressed transmission, clear image and strong anti-interference ability;
2. Support multiple resolutions up to 4K×2K@30HZ,support 3D;
3. Support EDID transparent transmission, compatible with different brands of display output devices;
4. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc.
5. Support bidirectional transmission of audio;
6. Support transmission through Gigabit LAN;
7. Supports bidirectional transmission of serial port, this function is limited to IPDE-120UAS model
