USB-2034( Four-port Singlemode Fiber 20km extender)
USB-2034( Four-port Singlemode Fiber 20km extender)
Share to:

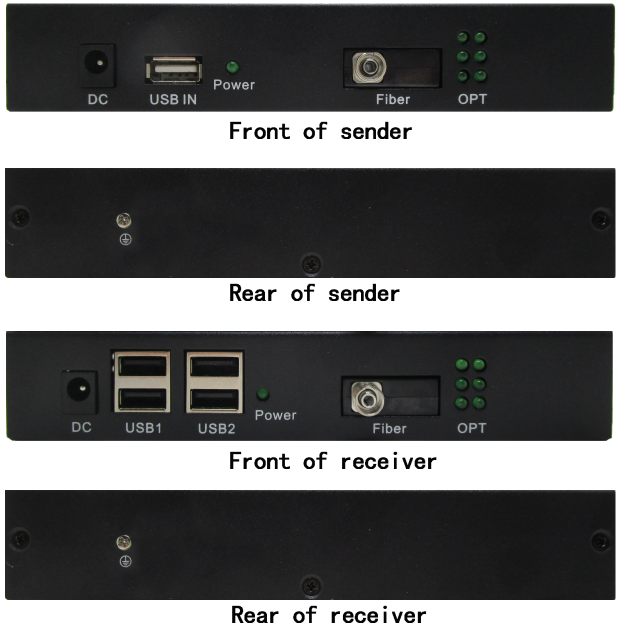

       This product consists of the transmitter (marked with Sender) and the receiver (marked with Receiver), Through the single-core single-mode fiber to extend the host's USB interface up to 20KM, through the single-core multimode fiber to extend the host's USB interface up to 2KM, and the receiver expands out four USB2.0 interface.
     This product can be widely used in the field of computer and education, banking and securities systems.

Connection diagram


1. The receiver expands 4 standard USB2.0 interfaces.

2. Compatible with almost any USB device, plug and play.

3. No need to install drivers.

Number of input signal

1CH USB

Number of output signal

4CH USB

Extend distance

Single mode:0-20km

Multi mode:0-2km

Optical interface

FC/SC for choose

Wavelength

850nm/1310nm/1550nm

USB Standard

Support USB2.0 protocol

Interface type

USB A

Power

SenderDC9V/2A

ReceiverDC9V/2A

Drivers

No need drivers

Sender consumption

<5W

Receiver consumption

<7W

Size (L×W×H)

Sender160×127×30(mm)

Receiver160×127×30(mm)

N.W

1.61kg
