DVE-200M(DVI HD video network matrix)
DVE-200M(DVI HD video network matrix)
Share to:
      The product include one transmitter(marked with sender) and one receiver (marked with receiver),it adopt H.264 high-definition digital video compression technology, Access multicast switch, the sender can be set by software for packet transmission, switching display different signal sources to achieve network video matrix function. And also can transmit IR infrared signal at the same time, can control the infrared remote control of DVD, set-top box and other equipment.

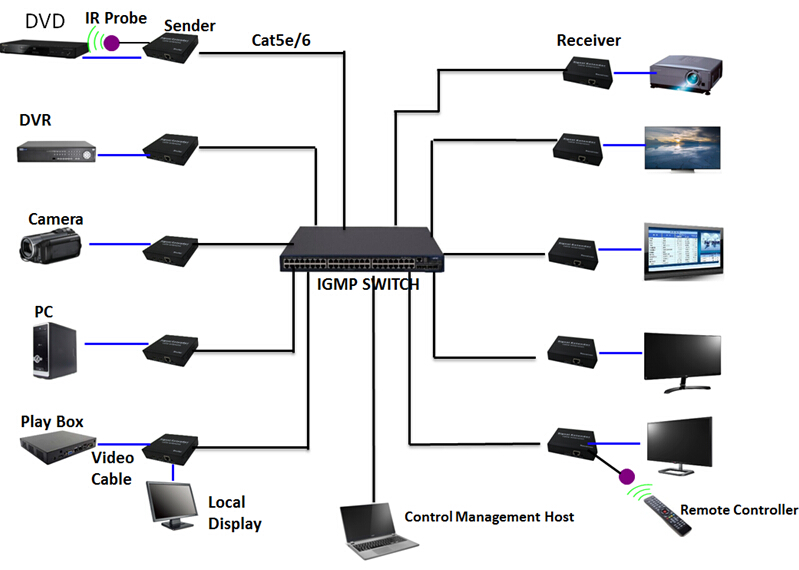

Installation diagram
1.With network video matrix function
2. Using H.264 high-definition digital video compression technology, the product is stable and reliable, clear video, small stream, low latency;
3. Support the highest resolution up to 1920x1080 @ 60Hz;
4. sender and receiver direct connection distance of up to 200 meters, the sender to the switch farthest transmission distance of 150 meters, the receiver to the switch the farthest transmission distance of 200 meters;
5. Switch needs to support multicast (IGMP) function;

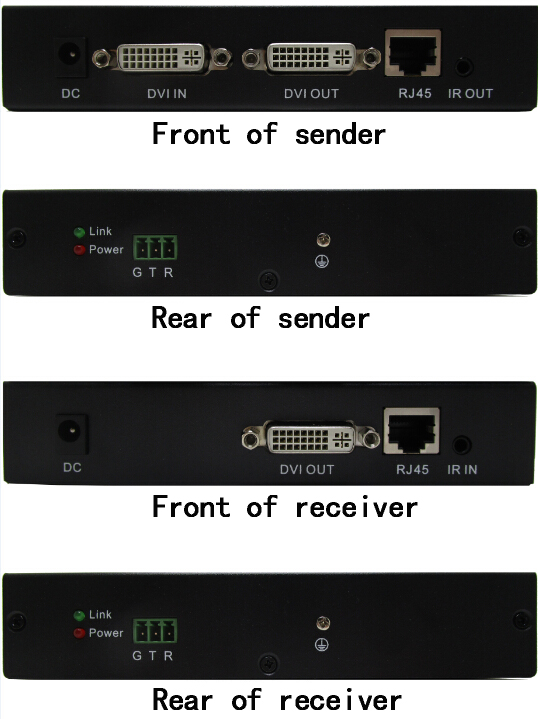

6. sender with DVI loop out interface;
7. Wide voltage work, DC5V-12V, easy to use on-site power supply;
8. Infrared function (optional).

Function

Number of input signal

Sender1CH DVI

Receiver1CH IR

Number of output signal

Sender1CH (DVI IR)

Receiver1CH DVI

Transmission distance

Direct connection0-200 meters

Video transmission

I/O connector

DVI-I (Only supports DVI-D)

Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

Infrared remote control performance and interface

Remote control interface

3.5mm audio port

Remote control interface signal

Infrared control signal

Attribute

Size (L×W×H)

Sender:  151mm×111mm×30mm
Receiver:151mm
×111mm×30mm

Case

Iron

Color

Black

Power supply

Voltage range

DC5~12V/1A

Sender consumption

4W

Receiver consumption

3W

Operating environment

Working Temperature

-15-55

Storage temperature

-40-80

Relative humidity

0-95% (No condensation
