The product include one transmitter(marked with sender) and one receiver (marked with receiver),it adopt H.264 high-definition digital video compression technology, Access multicast switch, the sender can be set by software for packet transmission, switching display different signal sources to achieve network video matrix function. And also can transmit IR infrared signal at the same time, can control the infrared remote control of DVD, set-top box and other equipment.

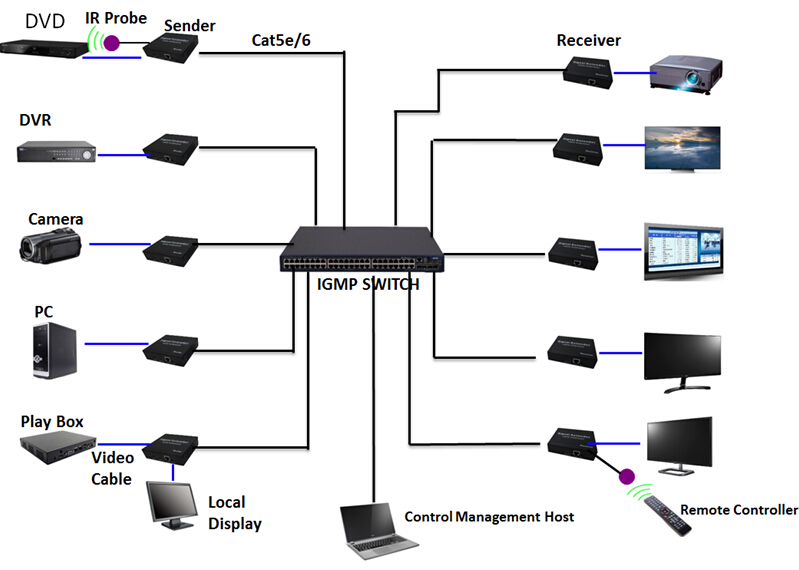

Installation diagram
1.With network
video matrix function
2. Using H.264
high-definition digital video compression technology, the product is stable and
reliable, clear video, small stream, low latency;
3. Support the
highest resolution up to 1920x1080 @ 60Hz;
4. sender and
receiver direct connection distance of up to 200 meters, the sender to the
switch farthest transmission distance of 150 meters, the receiver to the switch
the farthest transmission distance of 200 meters;
5. Switch needs to
support multicast (IGMP) function;

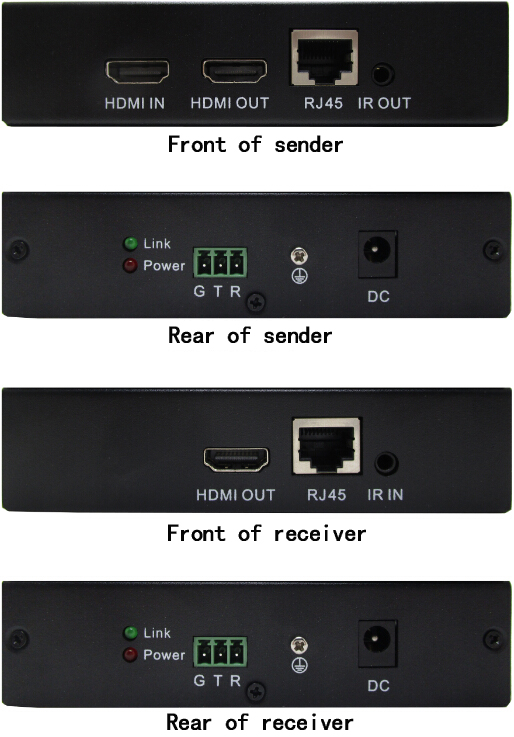

6. sender with
HDMI ring out interface;
7. Wide voltage
work, DC5V-12V, easy to use on-site power supply;
8. Infrared
function (optional).
