HDF-300C(HDMI BNC cable extension 300 meters)

Share to：

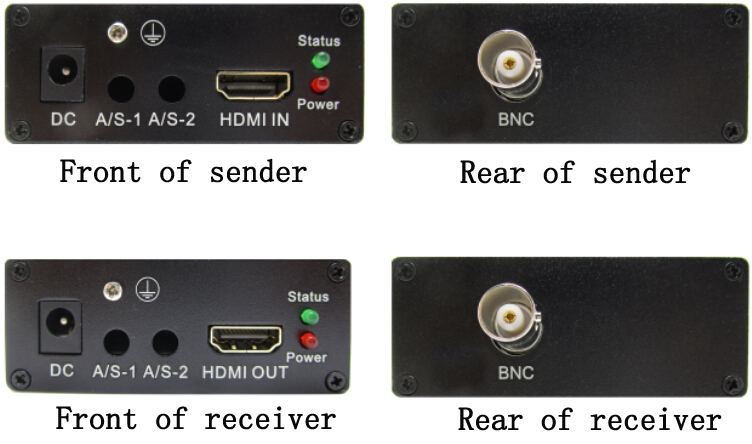

The product include one transmitter(marked with sender) and one receiver (marked with receiver), can using a single BNC cable to extend the HDMI signal up to 300 meters.This product supports real-time transmission of HDMI HD video, the maximum resolution is: 1920x1080@60Hz.
The product can be used in security monitoring, media advertising, government departments, business shows, video conferencing, multimedia function hall and other fields.

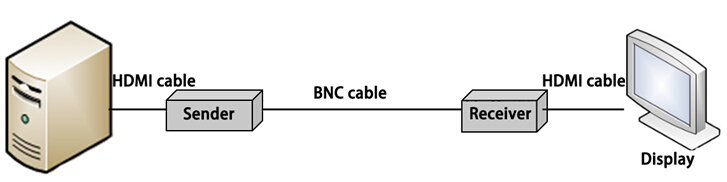

Application Map

1. Resolution up to 1920x1080 @ 60Hz

2. Adaptive HDMI input resolution.

3. Embedded audio and image synchronization output.

4 support HDCP1.2 protocol

5. Built-in ESD protection circuit, can effectively prevent static electricity.

6. Easy to install.

Function	Number of input signal	1CH HDMI
	Number of output signal	1CH HDMI
	Transmission distance	0-300 meters
Video transmission performance and interface	I/O connector	HDMI
	HDMI version	HDMI1.3
	HDCP version	HDCP1.2
	HDMI resolution	1080p/1080i/720p/720i/576p/576i/480p/480i
	Video color format	24bit/deep color 30bit/deep color 36bit
	Audio format	DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
	TMDS	0.5-1.5Vp-p(TTL)
	DDC	5Vp-p(TTL)
Transmission interface	BNC	75-5 BNC cable
Attribute	Size (L×W×H)	Sender: 105mm×75mm×30mm Receiver: 105mm×75mm×30mm
Attribute	N.W	0.28Kg
Power supply	Voltage range	Input：AC110V-220V，50/60HZ Output：DC9V/1A
	Sender consumption	5W
	Receiver consumption	5W
Operating environment	Working Temperature	-15℃-55℃
	Storage temperature	-40-80℃
	Relative humidity	0-95% (No condensation）
