HDV-SA(HDMI Audio Separator)
HDV-SA(HDMI Audio Separator)
Share to:

This product can connect HDMI source to a single HDMI display device (such as TV, projector) and independent output stereo + SPDIF signal to achieve HDMI signal audio synchronization separation.

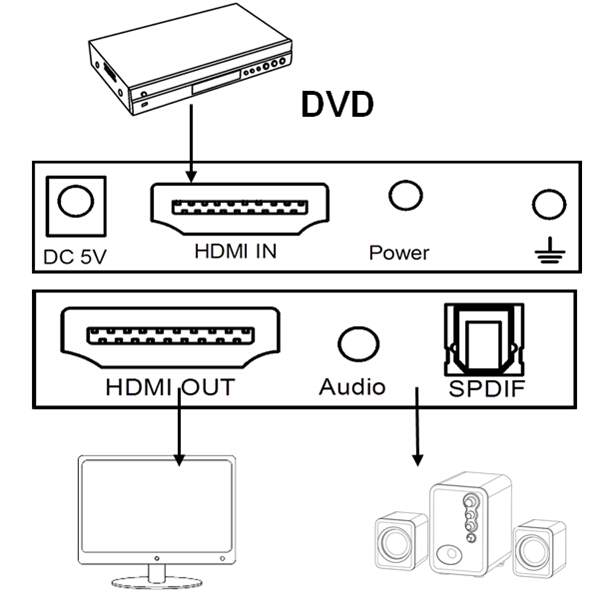

Application Map

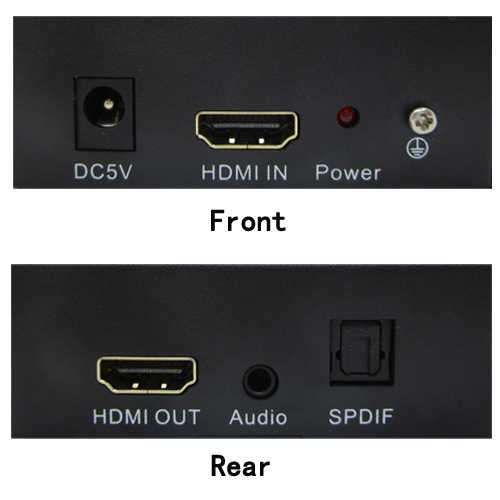

·         1CH HDMI signal input,1CH HDMI+ Audio +SPDIF output

·         Supports audio output: SPDIF+ 3.5mm audio port

·         Input support: maximum support 4Kx2K

·         Support HDCP and 3D

·         Can achieve audio synchronization separation output

·         No signal loss

·         Installation is simple

·         External DC5V / 1A power supply

·         HDMI resolution .................... 4Kx2K /1080p/1080i/720p/576p/576i/480p/480i,

·         Support video color format ......................24bit/deep color 30bit,36bit

·         Audio output............................ Stereo channels and fiber output

·         Maximum transmission bandwidth...................................340MHz

·         Maximum baud rate.................................10.2Gbps

·         Input / output TMDS signal .......................... 0.5~1.5Volts p-p

·         Input / output DDC signal .......................... 5Volts p-p (TTL)

·         Input cable length...... ..................≤10m AWG26 HDMI standard cable

·         Output cable length......................≤15m AWG26 HDMI standard cable

·         Power adapter specifications............input:AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

·         Operating temperature range................................ (-15 to +55℃)

·         Operating humidity range...........................5 to 90%RH (No condensation)

·         Size (L * W * H) ..........................76X72X29(mm)

·         Weight.........................................145g
