Product Introduction:
This is a 1X8 HDMI splitter that supports full UHD and 3D, which can distribute one signal source to eight UHD display terminals such as monitor or projector.

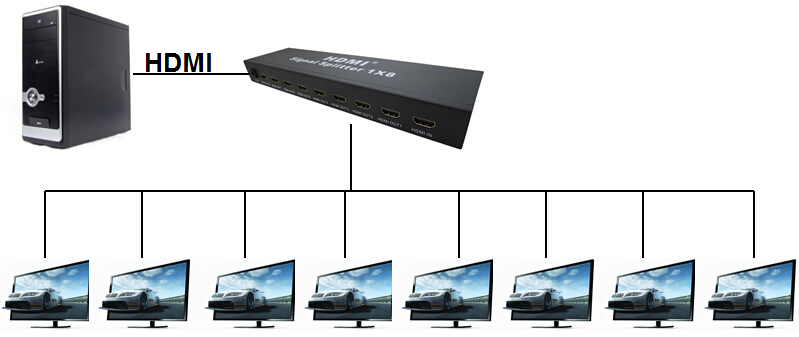

Application Map
Product Feature:
● 1way HDMI signal input, 8way HDMI signal output
● Support HDMI1.4
● Support 3D
● Support 1080P,1920×1200@60HZ，4K×2Kresolution
● Support CEC, HDCP
● Support 24bit/30bit/36bit deep color
● Support blue-ray DVD24/50/60fs/HD-DVD/xvYCC
● Audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
● Use AWG26 HDMI cable, input distance can reach 15meters, and output transmission distance 15meters
● No signal loss
● Easy to install
|
HDMI resolution
|
24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,1080P，4K×2K
|
|
Video color format
|
24bit/ 30bit/ 36bit
|
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Max bandwidth
|
225MHz
|
|
Max transmission speed
|
10.2Gbps
|
|
Input/output TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
Input/output DDC signal
|
5Vp-p(TTL)
|
|
Input cable length
|
≤15m AWG26 HDMI standard cable
|
|
Output cable length
|
≤15m AWG26 HDMI standard cable
|
|
Power adaptor
|
AC input: 100~240V 50/60HZ; DC output: 5V/2A
|
|
Working temperature
|
-15 to +55℃
|
|
Working Humidity
|
5 to 90%RH (non-condensing)
|
|
Dimension
|
265X72X30(mm)
|
|
Product weight
|
0.6KG
|
