The

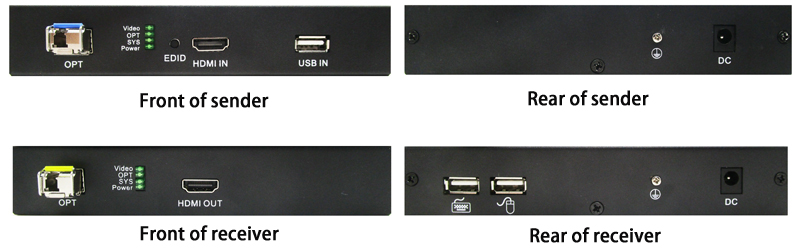

product is composed of sender(marked with Sender)and receiver (marked with receiver)，Can extended the HDMI, USB keyboard mouse signal to the remote through
the single core optical fiber. Using high speed FPGA techniques convert the
HDMI signal to 3G fiber signal transmission. Maximum resolution can reach 1920*1200@60Hz,maximum
transmission distance up to 10 km, widely used in the field of security
monitoring , multimedia information distribution, government, medical system,
commercial display, multimedia function hall, utilities and so on.

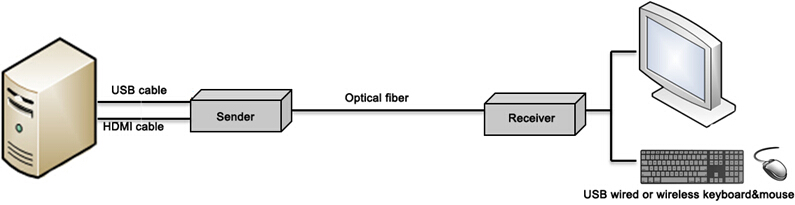

Application Map
Model list
|
Model
|
Optical fiber
|
Transmission distance
|
Maximum resolution
|
|
EVO-3HU
|
Single mode single core
|
10km
|
1080P
|
|
EVO-4HU
|
Multi mode single core
|
500m
|
1080P
|
1.All-digital, uncompressed high definition optical fiber transmission technology
2.SFP optical module
3.Support read EDID
4.Maximum resolution can reach 1920x1200@60Hz
5.Support single-mode/multimode optical fiber transmission
6.Heat emission hole on the side, be helpful for heat dissipation
7.Simple installation, plug and play
|
Function
|
Number of
input signal
|
1CH(HDMI、USB)
|
|
Number of
output signal
|
1CH HDMI、2CH USB
|
|
Transmission
distance
|
500M(multi
mode)/10KM(single mode)
|
|
Video
interface and performance
|
Video input
interface
|
Sender：HDMI
|
|
Video output
interface
|
Receiver：HDMI
|
|
Resolution
|
1920*1200@60HZ
1920*1080@60HZ
1680*1050@60HZ
1440*900@60HZ
1360*768@60HZ
1280*720@60HZ
1280*1024@60HZ
1280*768@60HZ
1024*768@60HZ
800*600@60HZ
|
|
USB
|
Protocol
|
Only support
USB wired/wireless keyboard&mouse
|
|
Optical
|
The optical
input and output interface
|
single/multi
mode LC
|
|
Transmission
wavelength
|
1310nm/1550nm
|
|
Power supply
|
Adaptable voltage
|
DC9V/2A
|
|
Power
consumption
|
Sender：6W
Receiver：6W
|
|
Attribute
|
Overall
dimensions
|
Sender：160mm×118mm×31mm
Receiver：160mm×118mm×31mm
|
|
Case
|
Iron
|
|
Color
|
Black
|
|
Operating
environment
|
Storage
temperature
|
-40-80℃
|
|
Humidity
|
0-95% (No
condensation）
|
|
Working
Temperature
|
-15℃-55℃
|
