The product is composed of sender(marked with Sender)and receiver (marked with receiver)，Can extended the DVI, USB keyboard mouse signal to the remote through the optical fiber，Using high speed FPGA techniques convert the DVI signal to 3G fiber signal transmission.
Maximum resolution ca reach 1920*1200@60Hz,maximum transmission distance up to 10 km, widely used in the field of security monitoring , multimedia information distribution, government, medical system, commercial display, multimedia function hall, utilities and so on.

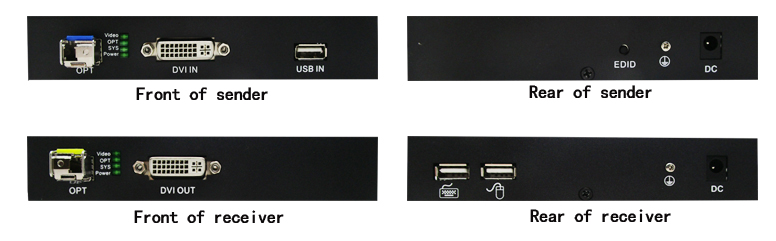

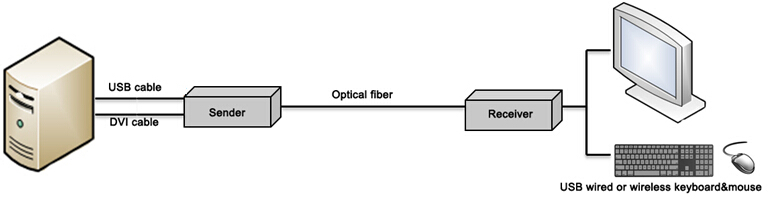

Connection diagram
Model list
|
Model
|
Optical fiber
|
Transmission distance
|
Maximum resolution
|
|
EVO-3DU
|
Single mode single core
|
10KM
|
1080P
|
|
EVO-4DU
|
Multi mode single core
|
500M
|
1080P
|
|
EVO-3DUK
|
Single mode single core
|
10KM
|
1920*1200@60HZ
|
|
EVO-4DUK
|
Multi mode single core
|
500M
|
1920*1200@60HZ
|
1.All-digital, uncompressed high definition optical fiber transmission technology
2.SFP optical module
3.Support read EDID
4.Maximum resolution can reach 1920x1200@60Hz
5.Support single-mode/multimode optical fiber transmission
6.Aluminum shell design, be helpful for heat dissipation
7.Simple installation, plug and play
|
Function
|
Number of input signal
|
1CH(DVI、USB)
|
|
Number of output signal
|
1CH DVI、2CH USB
|
|
Transmission distance
|
500M(multi mode)/10KM(single mode)
|
|
Video interface and performance
|
Video input interface
|
Sender：DVI-I(Only support DVI-D signal)
|
|
Video output interface
|
Receiver：DVI-I(Only support DVI-D signal)
|
|
Resolution
|
1920*1200@60HZ
1920*1080@60HZ
1680*1050@60HZ
1440*900@60HZ
1360*768@60HZ
1280*720@60HZ
1280*1024@60HZ
1280*768@60HZ
1024*768@60HZ
800*600@60HZ
|
|
USB
|
Protocol
|
Only support USB wired/wireless keyboard&mouse
|
|
Optical
|
The optical input and output interface
|
single/multi mode LC
|
|
Transmission wavelength
|
1310nm/1550nm
|
|
Power supply
|
Adaptable voltage
|
DC9V/2A
|
|
Power consumption
|
Sender：6W
Receiver：6W
|
|
Attribute
|
Overall dimensions
|
Sender：160mm×118mm×31mm
Receiver：160mm×118mm×31mm
|
|
Case
|
Aluminum
|
|
Color
|
Black
|
|
Operating environment
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (No condensation）
|
|
Working Temperature
|
-15℃-55℃
|
