Oav-8v-d1 is a monitoring video optical terminal that provides users with eight channels of video, one channel of 485 data signal long-distance, high fidelity and high quality transmission on a single optical fiber. The product adopts uncompressed, full digital video error correction and gigabit optical fiber transmission technology. The optimized design of the product ensures high reliability operation in harsh environment. Various status indicators provide fast system diagnosis function..

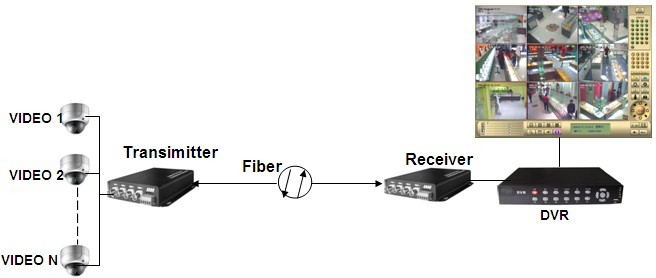

Applications:
◆Urban Intelligent Transport System (ITS)
◆Highway monitoring and communication system
◆Electricity and hydraulic power security monitoring system
◆Mining security monitoring system
◆Long distance multimedia schooling, campus monitoring
◆Long distance broadcasting and television transmission system
◆Building management system (BMS)
◆Military communication
◆other industries
Model list:
|
Model
|
Signal support
|
Select
|
|
OAV-1V-D1
|
1-ch video,1-ch RS485 data
|
□
|
|
OAV-2V-D1
|
2-ch video, 1-ch RS485 data
|
□
|
|
OAV-4V-D1
|
4-ch video, 1-ch RS485 data
|
□
|
|
OAV-8V-D1
|
8-ch video, 1-ch RS485 data
|
□
|
|
OAV-16V-D1
|
16-ch video, 1-ch路RS485 data, 1U rack type
|
□
|
|
OAV-32V-D1
|
32-ch video, 1-ch RS485 data, 2U rack type
|
□
|
|
OAV-1V
|
1-ch video
|
□
|
|
OAV-2V
|
2-ch video
|
□
|
|
OAV-4V
|
4-ch video
|
□
|
|
OAV-8V
|
8-ch video
|
□
|
|
OAV-16V
|
16-ch video, 1U rack type
|
□
|
|
OAV-32V
|
32-ch video, 2U rack type
|
□
|
|
Remarks
|
V: video D: data
|
Function and Features:
1, 10 bit uncompressed and high resolution video transmission
2, Automatically compatible with PAL、SECAM、NTSC video mode
3, Automatic power mediation, automatic temperature compensation circuit, automatic overload protection recovery
4, ST/FC/SC type for option; 2KM (MMF)/ 20~120KM (SMF) for option
5, Support video intact regenerative relay
6, ASIC design
7, Industrial working temperature range (-40℃～+85 ℃ )
8, Support hot plug and play
Technical Parameters:
Video
|
Connector type
|
BNC
|
|
Video mode
|
PAL/NTSC/SECAM
|
|
Input/output amplitude
|
1Vp-p
|
|
Input/output Impedance
|
75Ω
|
|
Bandwidth:
|
6.5MHz
|
|
Sampling frequency:
|
16.6MHz
|
|
Quantification level:
|
8bit
|
|
Differential gain:
|
1% typical value
|
|
Differential phase:
|
1°typical value
|
|
SNR:
|
63dB typical value
|
Data:
RS232 interface:
RS232 data rate: DC-115.2Kbps
RS232 error rate: <10E-12
RS232 data protocol: Support any kind RS232
RS232 connection type: Bi-directional RS232, support point to point
RS485/RS422 interface:
RS485/RS422 data rate: DC-250Kbps
RS-485/RS422 error rate: <10E-12
RS485/RS422 max node number: 128
RS485/RS422 max distance: 1200meters
RS485/RS422 protocol: Support any RS485/RS422, include RS485 polling or Modbus
RS485/RS422 connection: Support forward, reverse or bi-directional data, support point to point, point to multi-point connection
Optical
Optical transmit: Laser diode
Wavelength: 850nm for Multimode, 1310nm/1550nm for single mode
Fiber number: 1
Connector: FC (SC, ST optional)
Environment
MTBF: > 100,000 hours
Operating temperature: -40 ℃～+85 ℃
Storage temperature: -45 ℃～+95 ℃
Operating humidity: 0% to 95% Non-condensing
Power Supply
DC 5V/2-4A
Indicators
Power, Synchronization status
Video input/output status
Optic link indicator
Data indicator
