Product Introduction:

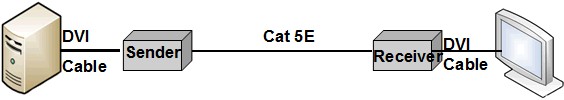

The device includes a sender and a receiver, which can transmit DVI signal transmission through single network cable to a remote location.
It support DVI signal transmission at 1920×1080@60Hz, support POE.
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Product feature:
1,Support 1920×1080@60Hz
2,Transmitter connected to an external power source, the receiver via POE power supply, transmission distance of 180 meters; receiver is connected to an external power supply, transmitter powered by POE, the transmission distance is 150 meters.
3,Single network transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play.
Product specification:
|
Video
|
I/O Connector
|
DVI-I(only support DVI-D)
|
|
Resolution
|
1080p
|
|
RJ-45
|
Cat 5E/Cat6
|
|
Physical
|
Size (L × W × H）
|
Sender: 93mm*74mm*30mm
Receiver: 93mm*74mm*30mm
|
|
N.W.
|
0.3Kg
|
|
Power
|
Voltage
|
DC 12V/2A
|
|
power consumption
|
<12W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (non-condensing)
|

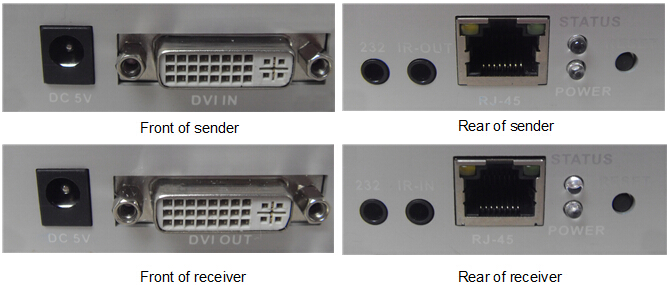

Front drawing:
