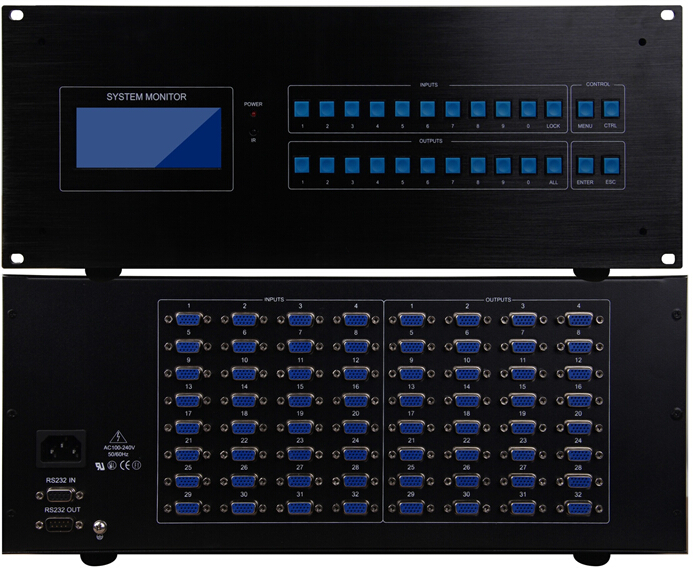

Standard
|
Parameter
|
Input
|
Signal type:VGA
Connector:triplex row 15 hole(VGA female)
Signal strength:1Vp-p:Y Component video、S-video,
Composite video;0.7V p-p:VGA(computer signal);0.3V p-p:R-Y B-Y Component video、 S-video
Minimum signal level:0.5Vp-p
Impedance:75Ω
Return loss:-30Db@5MHz
|
Output
|
Signal type:VGA
Connector:triplex row 15 hole(VGA female)
Output level:2.0Vp-p
Impedance:75Ω
Return loss:-30Db@5MHz
|
Synchronizing signal
|
Input/output signal type:TTL
Input level:0~5.0Vp-p,4.0V
Output level:TTL: 5Vp-p
Input impedance:510Ω
Output impedance:75Ω
Polarity:positive or negative in accordance with the input
|
Bandwidth
|
400MHz(-3dB)full load,0~10MHz@±0.1dB,0~100MHz@±0.6dB
|
Resolution
|
Support 800*600,1024*768,1280*768,1280*1024,1360*768,1400*1050,1600*1200,1920*1080,2048×1536
|
Serial interface
|
RS 232,9 pin D type connector,Port 2,3,5 respectively through
Serial port parameters:9600bps、8 bit data、One start bit、One stop bit、No check, no flow control
|
Control mode
|
Panel buttons、RS232、IR remote control、Upper computer software
|
Power
|
100V-240VAC/50Hz
|
Consumption
|
30~150W(Depend on specific model)
|
Working Temperature
|
0℃~45℃
|
Working humidity
|
10%―90%
|
Installation
|
Cabinet-mounted、Fixed on table
|
Shock resistance
|
1M cement floor(include packing)
|
Static(ESD)
|
8KVDC
|
