VGA-204（2 To 4 VGA switch）
VGA-204（2 To 4 VGA switch）
Share to：
Description:  2 to 4 VGA switch
      Two computers share 4 monitors synchronous, up to 350MHz bandwidth, remote control and RS232, Ideal for classrooms, stock information display, and many other applications.

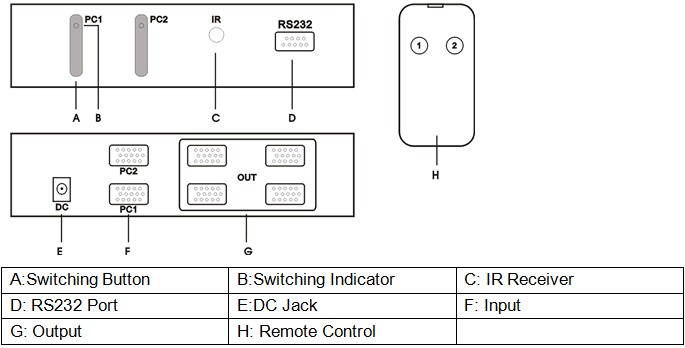

Product Drawing:

RS232 Communication Code:

Specification:

Input

2 way VGA 15HDF

Output

4 way VGA 15HDF synchronous

RGB analog channel

Bandwidth: 350MHz

Video Input Voltage

0.5-1Vp-p

Video Input Resistance

75 Ohms

Video Output Voltage

0.5-1Vp-p

Video Output Resistance

75Ohms

Horizontal Sync Channel Input

0.7-5Vp-p

Horizontal Frequency

30-100 K

Vertical Frequency

43-120Hz

Output level compatibility

TTL

Cable Length

45m (Input + output cable)

Max Resolution

1920*1440

Operating Voltage

DC 9V

Working Current

300mA

Case Material

Metal

Switching Method

1. Buttons on Panel

2. IR Remote Control

3. Controller via RS232
