Product Description

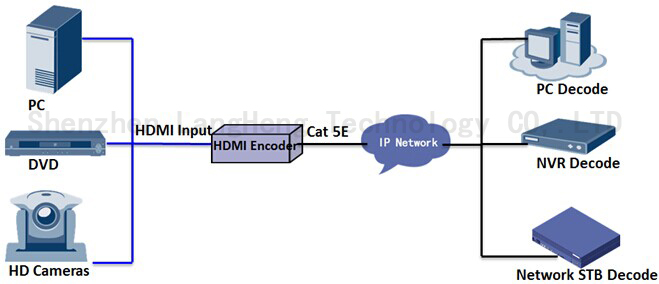

HDV-264E using H.264 compression technology for the High-definition digital video, support resolution up to 1080P which Stable and reliable, clear video, code small stream, low latency, it can be widely applied to various situation which needs of the HDMI high-definition video signal TCP / IP-based network transmission, acquisition.
Item Features
◆Use Standard H.264 encoding format;
◆Support ONVIF protocol;
◆Support UDP, HTTP, RTSP, RTMP protocol;
◆Support Unicast and Multicast;
◆Support NVR, network set-top box to decode high-definition video;
◆CBR/VBR/ABR rate control，16kbit/s～12Mbit/s;
◆Support HD video input resolution up to 720P, 1080P;
◆Support HDCP protocol, support for Blu-ray;
◆Compatible DVI video signal transmission;
◆Support stream increases watermark function, XY axis, you can set the font;
◆Main stream and the secondary stream may be a different network protocol for transmission;
◆Stream resolution supports custom output settings;
◆100Mbps network interface uses full duplex mode;
◆Support network management (WEB interface);
◆Support the insertion of watermarks LOGO;
◆Support for a key to restore the default configuration;
◆Support LAN, Internet transmission;
◆Low power dissipation supply design.
Product Specifications
Video transmission performance and interface section
|
Video input interface
|
one channel HDMI
|
|
Support HDMI version
|
HDMI1.3
|
|
Support HDCP version
|
HDCP1.2
|
|
HDMI resolution
|
Max resolution 1080P
|
|
Support video color format
|
24/deep color 30 /deep color 36
|
|
Audio format support
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Input output TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
Input output TMDS signal
|
5Vp-p(TTL)
|
|
The internet
|
interface
|
10/100Mbps
|
|
Network protocol
|
Support UDP, HTTP, RTSP, RTMP protocol
Support unicast and multicast
|
|
Interface protocol
|
ONVIF
|
|
Attributes
|
Size(L*W*H)
|
107mm*80mm*29mm
|
|
material
|
metal case
|
|
color
|
black
|
|
Power supply section
|
Adaptation voltage range
|
input：AC110V-220V，50/60HZ
output：DC9-12V/1-2A
|
|
power dissipation
|
<4.5W
|
|
Operating environment
|
Operating temperature
|
-15℃-55℃
|
|
storage temperature
|
-40-80℃
|
|
humidity
|
0-95% (Non-condensing）
|
