S3-1GO1GE-FC20(Gigabit fiber optic transceivers)
S3-1GO1GE-FC20(Gigabit fiber optic transceivers)
Share to:

Product introduction

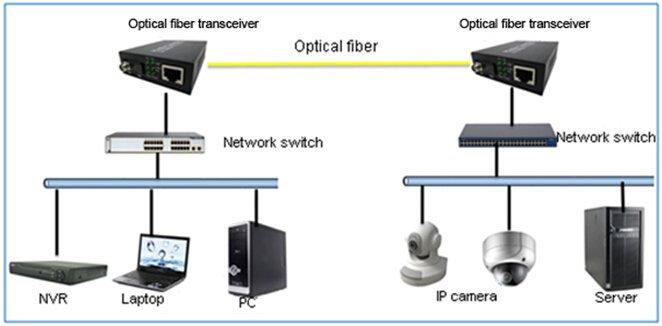

This product is used for 1000Mbps computer Ethernet electrical signal transformed into optical signals. It meet IEEE802.3z/AB standards. Suitable for use as a connector of intelligent community or optical fiber to the desktop. Break the limit of twisted-pair transmit 100m extend to 20km. Can simply achieve the interconnection among multiple servers, Repeaters, hubs, switches, and the terminal.


Product features
1,Reliable data transmission, long working life
2,Support jumbo frames
3,Support IEEE802.3z/ab、1000Base-FX、1000Base-TX protocol
4,Ethernet port support 10/100M/1000Mbps
5,Ethernet port support parallel/cross network self-adaption
6,Optical path support furthest 20 km transmission distance
7,With store and forward mechanism, 256 KB cache, support for multiple protocols;
8,Support wide voltage:DC5V-18V;
9,Jumbo Frame Support 10K;
10,Support hot plug。

Specification

Optical property

Transmission distance

0~20km

Transmit Power

-15~ -8dBm

Receive Sensitivity

<-32dBm

Optical interface

FC

Wave length

1310/1550nm

Network characteristic

Data send and receive rate

1000Mbps、 100Mbps、10Mbps

Cache

256KB

Operating mode

Full duplex/Half duplex

power supply

Voltage range

Input:AC110V-220V,50/60HZ

Output:DC5-18V/1A

Plug Size:Φ5.5×2.0 Reveal:10mm

Appearance attribute

Size (L×W×H)

94mm×70mm×25mm

Material

Steel casing

Color

Black

Operating environment

Working Temperature

-30~50℃

Storage temperature

-40~70℃

Relative humidity

5%~90%
