Product introduction
This product Self-adaptive fast Ethernet to complete optics and electrics conversion among 10、100Base-TX to100Base-FX. Support IEEE802.3 10Base-T、IEEE802.3u 100Base-TX、100Base-FX standard. Can effectively support full duplex or half duplex mode. It's the ideal equipment for campus and backbone or exchange Shared Ethernet cabling. Can be used to connect to the server, workstations, HUB, switch. Ethernet port can transmission maximum 100m. Optical port can transmission maximum 20km.
The optical fiber switch are divided into type A and type B，type A：Emission wavelength 1310nm，Receive wavelength 1550nm，type B：Emission wavelength 1550nm，Receive wavelength 1310nm.When using, type A and type B must be matched to use (one end with type A, the other end with type B)

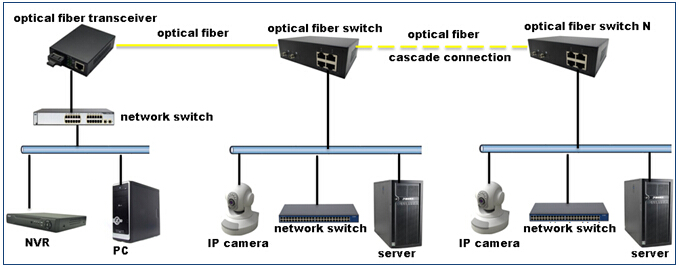

A+B connection diagram:

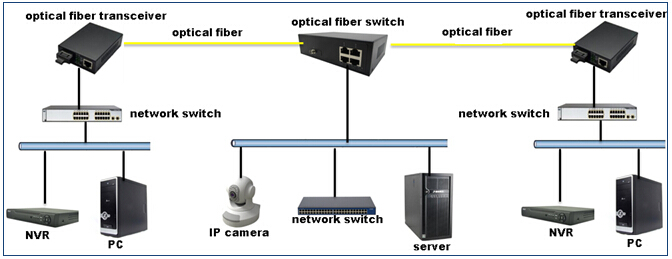

A+A or A+B connection diagram:
Product features
◆Support IEEE802.3u.100BASE-T and 100 BASE-FL protocol
◆Supports full duplex/half duplex mode, With automatic consultation function
◆Single-mode maximum transmission distance：20km
◆The machine produce less heat, stable and reliable in performance
◆Plug and play, do not need to set
◆Complete state of the LED indicator, convenient for network diagnosis and fault inspection
◆Automatic identification of MD1 / MD1 - X cross line and the parallel lines
◆Good flow control, with automatic reset function, can effectively prevent the system halted
◆Small casing design, unique appearance
◆Double fiber interface switches have three types for optional, they are：One fiber interface transmit end，one fiber interface receive end/Both fiber interface are receive end/ Both fiber interface are transmit end
Specification
|
Standard Protocol
|
IEEE802.3、10Base-T、IEEE802.3u、100Base-TX、100Base-FX
|
|
Operating mode
|
Full duplex/half duplex，with automatic consultation function
|
|
Transmission rate
|
10M/100Mbps
|
|
Transmission fiber
|
Single mode：8/125，8.3/125，9/125，10/125um
|
|
Optical wavelength
|
1310nm/1550nm
|
|
Transmission line
|
STP/UTP，Cat5e/Cat6
|
|
Power supply parameters
|
Input：AC110V-220V，50/60HZ
Output：DC5V
DC plug size：Φ5.5×2.0 Reveal：10mm
|
|
Size（L×W×H）
|
143mm×109mm×48mm
|
|
Working Temperature
|
0-65℃
|
|
Storage temperature
|
-20～80℃
|
|
Relative humidity
|
5%～90%
|
