Product introduction:

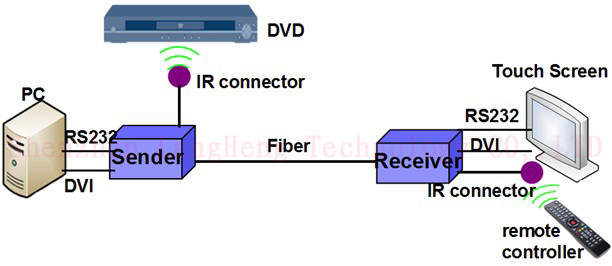

This set of equipment includes a sender and a receiver, which can transmit video and IR signal to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product support DVI video and IR signal transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Model list:
|
Model
|
Fiber type
|
Distance
|
Signals available for option
|
Selection
|
|
MVO-1D
|
Multi mode
Dual core
|
2KM
|
DVI, IR, Serial
|
□
|
|
MVO-2D
|
Single mode
Dual core
|
20KM
|
DVI, IR, Serial
|
□
|
|
MVO-3D
|
Single mode
Single core
|
20KM
|
DVI, IR, Serial
|
□
|
|
MVO-4D
|
Multimode
Single core
|
2KM
|
DVI, IR, Serial
|
□
|
Product feature:
1, Support 1920×1080@60Hz
2, Max extension distance 2KM(MM fiber)/20KM(SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4, Also can support HDMI signal transmission
5, IR function (optional)
6, Serial function (optional)
Product specification:
Video
|
I/O connector
|
DVI-I
|
|
Resolution
|
1080p
|
|
IR
|
3.5mm phone jack
|
|
Serial
|
3.5mm phone jack
|
|
Optical
|
Connector
|
SM/MM SC/FC type
|
|
Wave length
|
850nm/1310nm/1550nm
|
|
Physical
|
Size (L× W ×H)
|
Sender : 138mm×115mm×30mm
Receiver: 138mm×115mm×30mm
|
|
Case
|
metal
|
|
Color
|
Black
|
|
N.W.
|
0.76Kg
|
|
Power
|
Voltage
|
5V/3A DC
|
|
sender power consumption
|
6W
|
|
receiver power consumption
|
6W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (non-condensing)
|
Front drawing:
