Product Introduction:

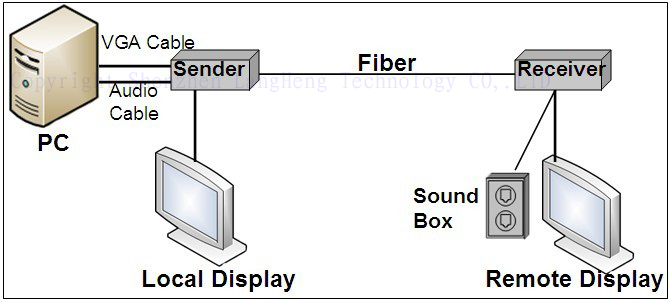

The device includes a sender and a receiver, which can transmit VGA video and Audio signal of PC to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product support HD VGA video signal transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Model list：
|
Model number
|
Fiber type
|
Transmission distance
|
Support signal
|
Select
|
|
MVO-1VA
|
MM duplex fiber
|
2KM
|
VGA, AUDIO
|
□
|
|
MVO-2VA
|
SM duplex fiber
|
20KM
|
VGA, AUDIO
|
□
|
|
MVO-3VA
|
SM single fiber
|
20KM
|
VGA, AUDIO
|
□
|
|
MVO-4VA
|
MM single fiber
|
2KM
|
VGA, AUDIO
|
□
|
Product Feature:
1, Max video resolution 1920×1080 @ 60HZ
2, Extension distance 2KM(MM)/20KM(SM)
3, Pure hardware design, no need software driver, plug and play
4, Support VGA, Audio interface
Product Specification:
Function
|
Input signal
|
1-ch VGA+AUDIO
|
|
Output signal
|
Sender 1-ch VGA
Receiver 1-ch VGA + 1-chAUDIO
|
|
Transmission distance
|
2000m(Multi mode), 20KM(single mode)
|
|
Video
|
Video input
|
HD15PIN (male VGA)
|
|
Video output
|
HD15PIN (female VGA)
|
|
Video resolution
|
1080p
|
|
Audio
|
3.5mm stereo audio
|
|
Optical
|
Optical input/output
|
SM/MM SC/FC for option
|
|
Transmission wave length
|
850nm/1310nm/1550nm
|
|
Physical parameter
|
Size（L×W×H）
|
Sender: 138mm×115mm×30mm
Receiver: 138mm×115mm×30mm
|
|
Case
|
Metal
|
|
Color
|
Black
|
|
N.W.
|
0.76Kg
|
|
Power
|
Voltage
|
AC input: 100-240V~50-60HZ
Output: DC5V/2A
|
|
Sender power consumption
|
<6W
|
|
Receiver power consumption
|
<6W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|

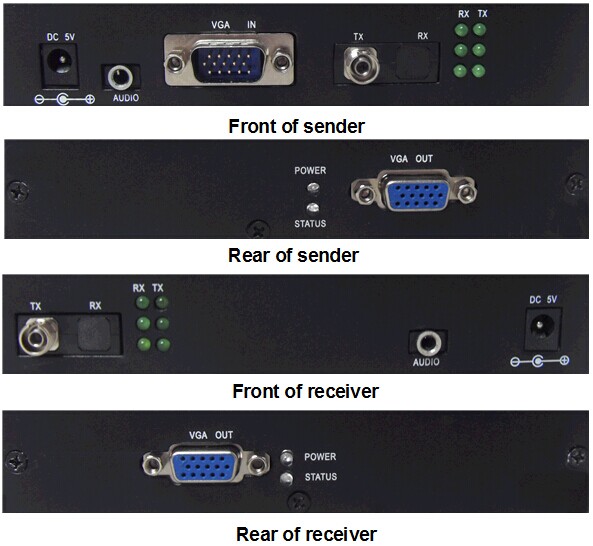

Front drawing:
